Hotel Fruit Vegetable Lyophilizer Fruit Vacuum Freeze Drying
Machine
Product Description
Household-type freeze dryer, also known as home freeze dryer, is a
small vacuum freeze dryer.Apply to the family, online shop a small
amount of freeze-dried use, widely adapted to fruits, meat,
vegetables, Chinese herbal medicines, health products, etc.
Freeze-drying.Lyophilization or freeze drying is a process in which
water is removed from a product after it is frozen and placed under
a vacuum, allowing the ice to change directly from solid to vapor
without passing through a liquid phase.
The process consists of three separate, unique, and interdependent
processes; freezing, primary drying (sublimation), and secondary
drying (desorption).
Small household vacuum lyophilization is made of 304 stainless
steel, and air drying, dehydration and other
technologies,lyophilized food is the biggest special ah to retain
the color, flavor and shape of the product and the nutritional
composition of the original ecological food, can be applied to
vegetables, fruits, tea, pet food and so on.
Features

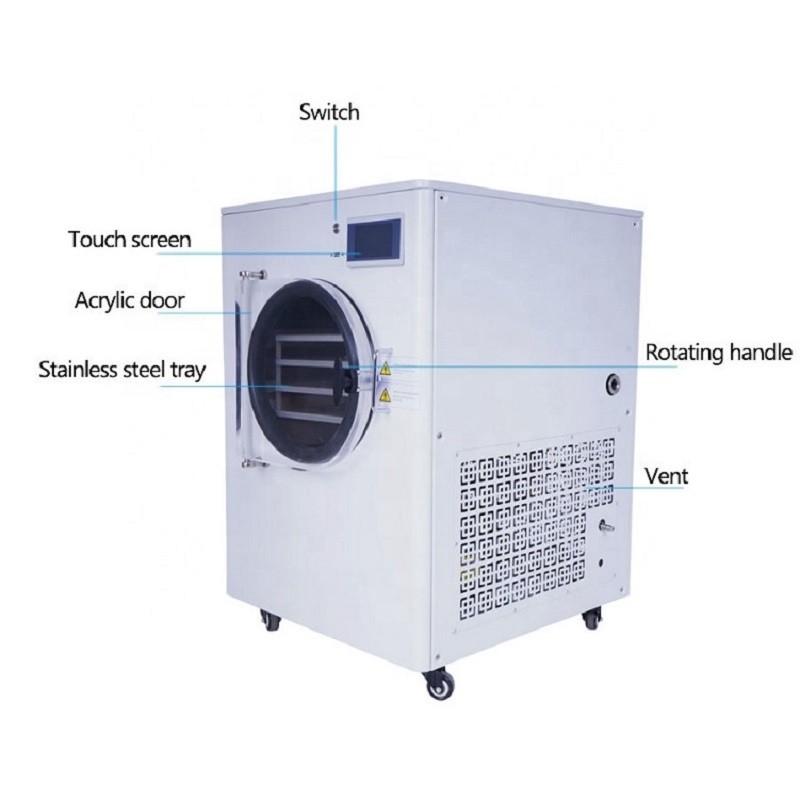

1. Stylish appearance, small size and exquisite;
2. Transparent plexiglass door for easy observation of the
lyophilization process;
3. SUS304 stainless steel material plate and liner, safe and
secure;
4. Acrylic door with flexbile hinge to ensure vacuum degree
5. Import of key components, low noise, high capacity, high quality
and high performance;
6. Touch screen operation, one-button start, automatic control of
freeze-drying process, easy and convenient;
7. The freeze-drying process can be set and adjusted in real time,
and the freeze-drying data and freeze-drying curve can be
displayed.
8. Advanced system, low operating current and low energy
consumption;
9. One-button fast defrosting technology, over temperature
automatic protection.
10.Commercial grade vacuum pump with low noise (oilless vacuum pump
is optional)
Specification
| Model | HFD-1 | HFD-4 | HFD-6 |
| Lyophilizing acreage(m2) | 0.1 | 0.4 | 0.6 |
| Cold trap temp(℃) | -40 | -40 | -40 |
| Ultimate vacuum(Pa) | 15 | 15 | 15 |
| Material processing(3kg/batch) | 1~2 | 4~6 | 6~8 |
| Shelf spacing(mm) | 45 | 45 | 50 |
| Power supply | 220V/50Hz(Customized for different country electricity) |
| Electric power(W) | 750 | 1500 | 2300 |
| Weight(kg) | 50 | 80 | 120 |
| Shelf dimension(mm) | 140*278(3 trayers) | 200*450(4 trayers) | 300*400(4 trayers) |
| External dimension(mm) | 400*550*700 | 510*700*850 | 700*800*1300 |
Packing and delivery
Generally speaking, our products are packed in wood case.We promise
that we will strictly check the quality of the products before
packaging, and pack them into the box after confirmation
Company Profile
Initially established in 2007
15 years experience in machinery business
Own import and export license
Expertise workmanship and QC
Professional sales team for overseas marketing
